Horizontal concentric connection kit suction cup outlet on top Bofill

Horizontal concentric connection kit suction cup outlet on Bofill.
Concentric connection kit for Wood pellet stove – Diameter 80 to 125mm - Black enamel – CE range and holder of a DTA technical approval.

This complete concentric connection kit is designed for pellet stoves with smoke outlet on the top in diameter 80 to 125mm.
Horizontal concentric duct with suction cup, safe and economical to connect your stove for installation at the outlet on the façade.
Installing the kit is simple. EasyLock system allows for easy, secure and resistant connection of the elements.
The EasyLock System works without a tie clamp for diameters 80(125) and 100(150) mm.
The pipe ducts fit into each other and connect your stove in just a few minutes.

However, it is necessary to pass the pipe through the wall to pass the duct to the outside of the home.
However, the size of the interior and exterior finishing rosettes is suitable for hiding the opening.

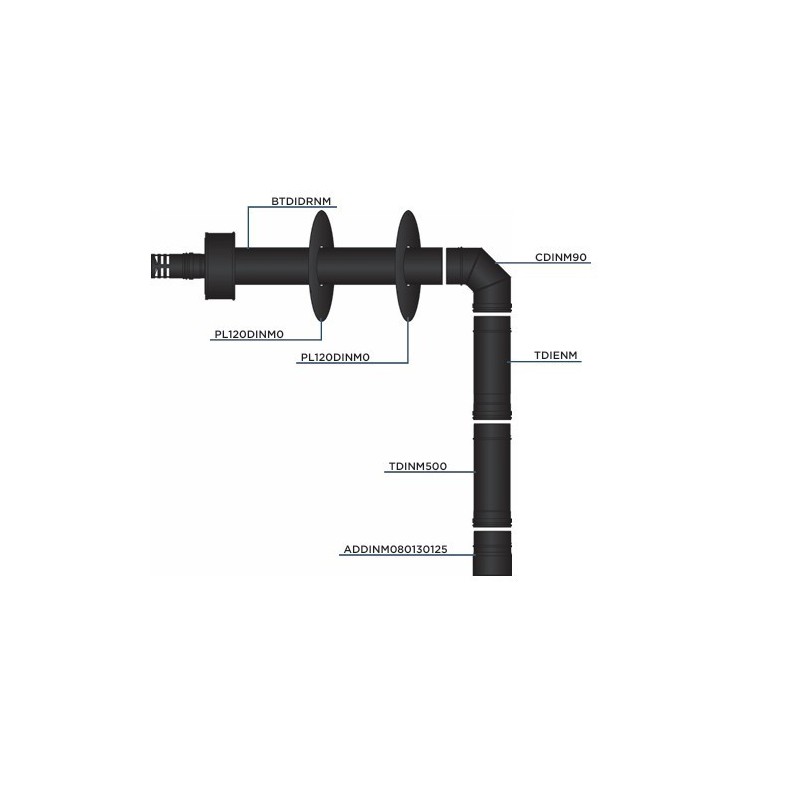

All you have to do is fit the elements in the same order as on the schematic BOM.

The kit consists of the following items :

• 1 - Horizontal terminal that can be dismantled and recouped ref BTDIDRNM,
• 2 x Ceiling Window 0º ref PL120DINM0,
• 1 elbow 90º ref CDINM90,
• 1 Adjustable element 362-534 mm ref TDIENM,
• 1 Straight element 500 mm. Ref TDINM500,
• 1 Adapter Ø080M/130M to Ø080/125 mm ref ADDINM80130125,
• 1 Silicone gaskets included ref JS.

Compliance and security of your installation:
Bofill ducts are DTA (Technical Application Document) certified.
The quality of the fumistery elements included in our kit is controlled and validated by the CSTB (Scientific and Technical Centre for Building).
This approved body is a major player in the field of evaluating the performance and technical characteristics of wood-burning equipment.

Installation instructions:
Bofill ducts allow a safe connection of wood stoves with a diameter of 080-125mm, in accordance with the NF DTU standard 24.1.
The assembly of the pipes is done by simple interlocking.
Bofill ducts have a perfect enamel quality and are specially designed to withstand very high temperatures.
This connection kit must be installed on a 150mm diameter wood stove with a 080-130mm diameter flue gas outlet.
It is important to follow the installation rules according to the NF DTU 24.1 and 24.2 standards, as well as the recommendations of the manufacturer of your stove.

The horizontal concentric Bofill suction cup kit should only be installed inside the home: in the room where your appliance is located, from the smoke outlet to the ceiling,
- Check with your installer the compatibility of your stove with this Bofill duct kit,
- Flue gas outlet diameter (mm) 150,
- Wood pellet fuel,
- 2-year warranty,
- Color: Black,
- Conduit material: Enameled steel.

Brand: BOFILL
Manufacturer and distributor of pipes for modular chimneys.
Insulated flues, concentric flues, complete solutions for chimneys and flues.
Waterproof single-wall duct, element for gas, oil or wood pellet fuel appliances.

To order Bofill brand items, you can ask us for all the items in the BOFILL catalog.
Special Range for Homes, Detached Houses, Chalets - Easy assembly and safety flanges supplied with the tubes.
Certified continuous insulation.
For all types of fuel except coal.
Easy assembly and safety flanges supplied with the tubes.
Nominal duct diameter from 80 to 200 m/m.
